IW-60 Hydraulic Punching Machine

IW-60 Hydraulic Punching Machine – High-Efficiency Punching Solution

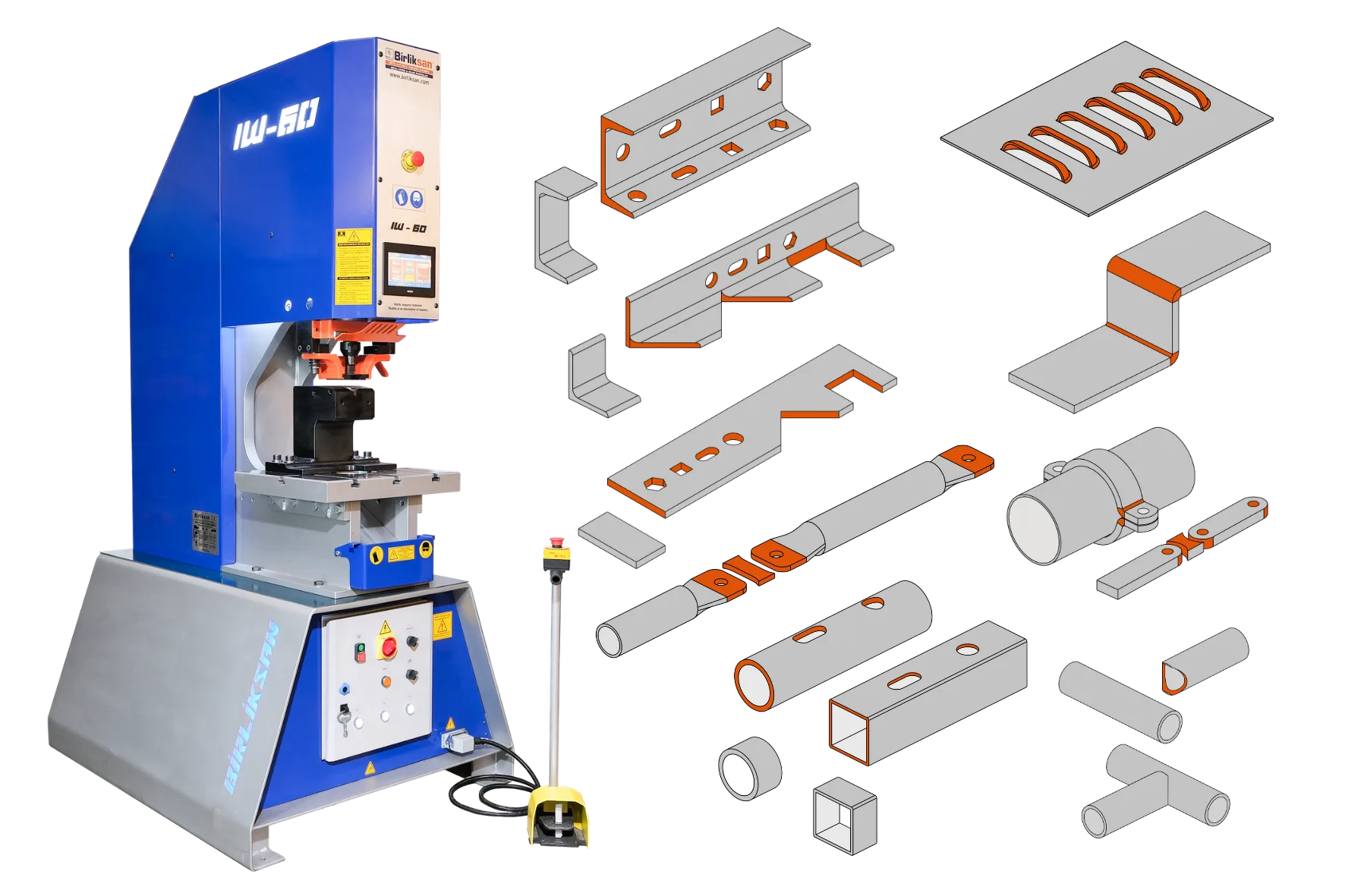

The Birliksan IW-60 (BH-630) Hydraulic Punching Machine is a multi-functional powerhouse engineered to meet the demanding requirements of modern metal fabrication shops and industrial production lines. While maintaining a compact footprint to minimize floor space, it integrates plate, flat bar, angle iron, round, and square bar shearing alongside heavy-duty punching operations into a single machine, powered by a high-capacity 60-tons hydraulic system.

Key Technical Advantages:

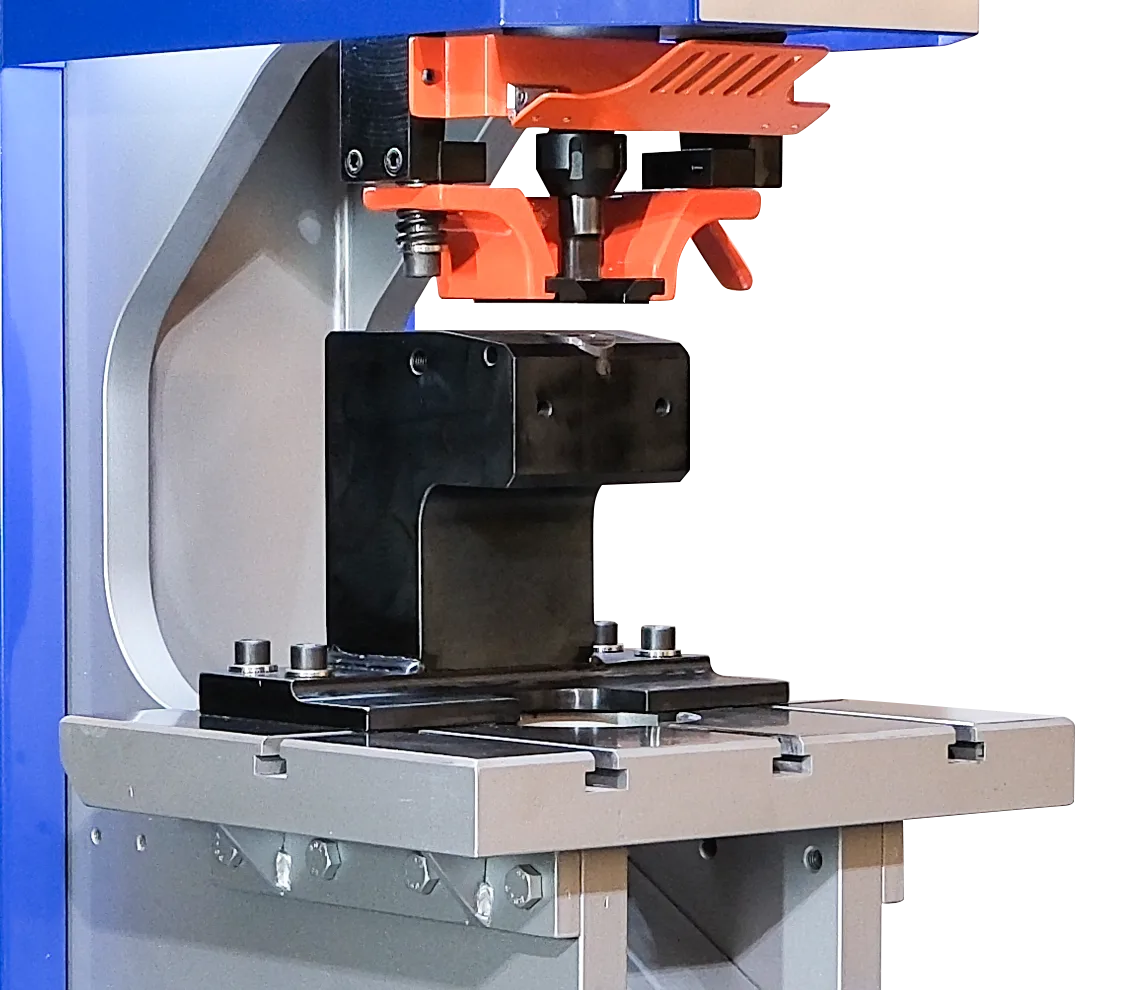

• Heavy-Duty Punching Performance: The robust punching station can accurately make holes up to Ø30 mm in diameter through 15 mm material thickness, or Ø26 mm holes through 20 mm plate thickness.

• Compact & Ergonomic Design: With optimized dimensions of 120x100x215 cm, it ensures maximum space efficiency in confined workshops while providing an ergonomic working height for operator comfort and safety.

• Expandable Tooling Infrastructure: The machine features an adaptable design that allows for easy capacity expansion. Optional specialized punching tools can be integrated for processing NPU (U-channel: 200x75 mm) and NPI (I-beam: 200x90 mm) profiles based on production requirements.

• Configuration Capabilities: The IW-60 hydraulic press can operate with many different forming dies. Thanks to its large table dimensions, it allows for the operation of large dies.

• PLC Control Unit: You can precisely control pressure and stroke with the 7" touchscreen PLC display.

Equipped with premium hydraulic components, a powerful 4 kW motor, and a rigid, heavy-duty frame, the IW-60 maximizes cycle times and throughput while ensuring strict compliance with operational safety and tight machining tolerances.
